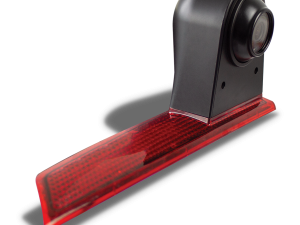

Ford Custom Brake Light Camera PSC41

Ford Custom Brake Light Camera PSC41

Specification:

  • Image Type – 1/3” Colour CMOS
  • Night vision With IR lamp
  • TV System – PAL/NTSC with Switchable
  • Lens Angle (Deg.) – 120 degree
  • IP Rating – IP69K
  • Vibration Rate – 10G

Full Spec Below.

For a quotation or advice on this product please contact us on 01733 852828 or email us at sales@vanwagen.co.uk

Description

Description:

  • Ford Transit Custom > May 2016 (LED Type Ford 2009953)  Replaces Ford Part Number 1816872

Specification:

  • Image Type – 1/3” Colour CMOS
  • Night vision With IR lamp
  • TV System – PAL/NTSC with Switchable
  • Lens Angle (Deg.) – 120 degree
  • IP Rating – IP69K
  • Vibration Rate – 10G
  • Connector 4P BMW to 4P lock connector
  • Effective Pixels N: 510×492 pixels P: 500×582 pixels
  • Horizontal Resolution 700TVL
  • White Balance Auto White Balance (Auto)
  • B.L.C Back light Compensation (Auto)
  • Minimum Illumination 0Lux (LED ON)
  • S/N Ratio 48dB
  • Electronic Shutter 1/60~1/100,000 Sec
  • Power consumption <3W
  • Built-in Lens f: 2.8mm
  • Power Consumption DC 12V (+/-10%)
  • Audio without
  • Operation Temperature -30℃~+70℃.RH95% Max
  • Storage Temperature -40℃~+80℃.RH95% Max

Certificates: FCC, CE, E-mark, ISO9001, TS16984 & RoHS • 4 Pin connector 15m cable

For a quotation or advice on this product please contact us on 01733 852828 or email us at sales@vanwagen.co.uk

View the product Brochure Below!

Brand

Parksafe
