Compact Classic for motor vehicles

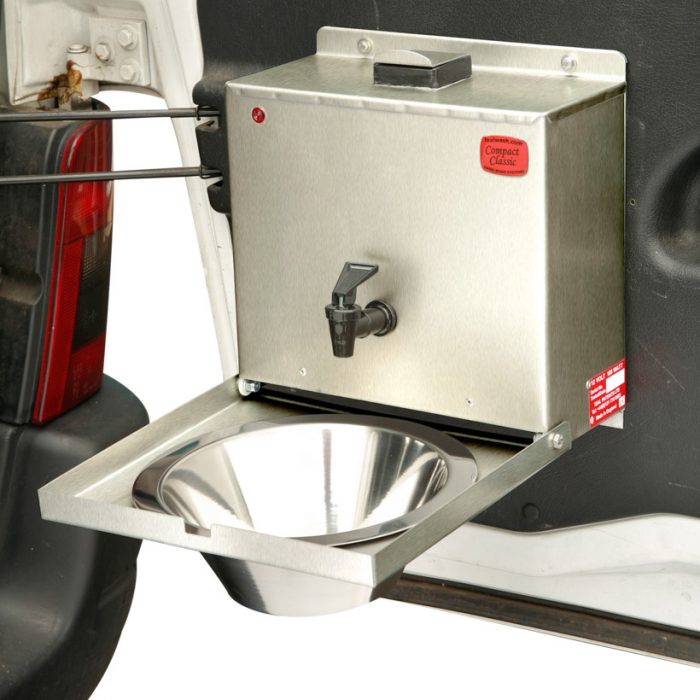

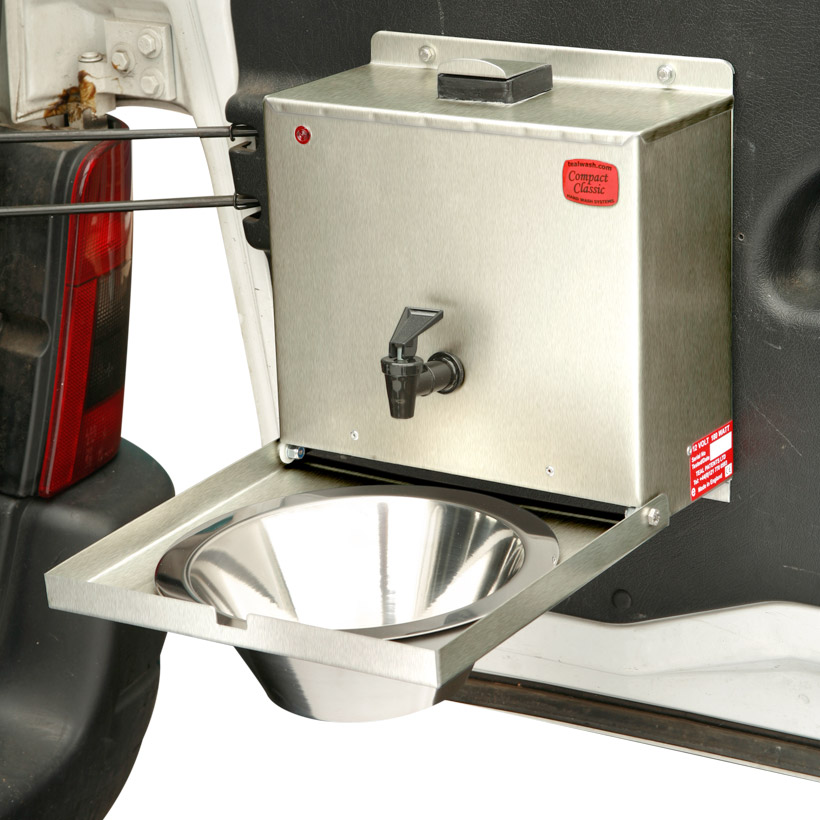

The TEAL Compact Classic hot water hand wash unit is designed to be fitted to motor vehicles, providing a hot water hand wash wherever it’s needed.
The Compact Classic is provided in 12 and 24 volt versions.
Conforms to ECE Regulation 10 and EC Directive 72/245. E11 approval no.10R-055528.

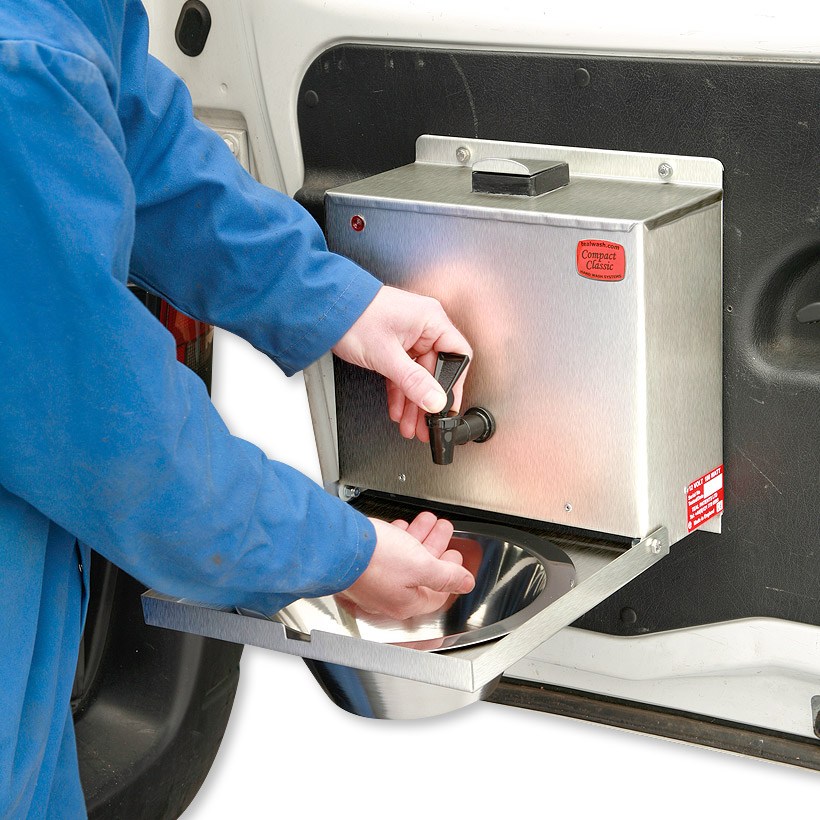

Clean hands on the move with the TEAL Compact Classic hot water hand wash unit.

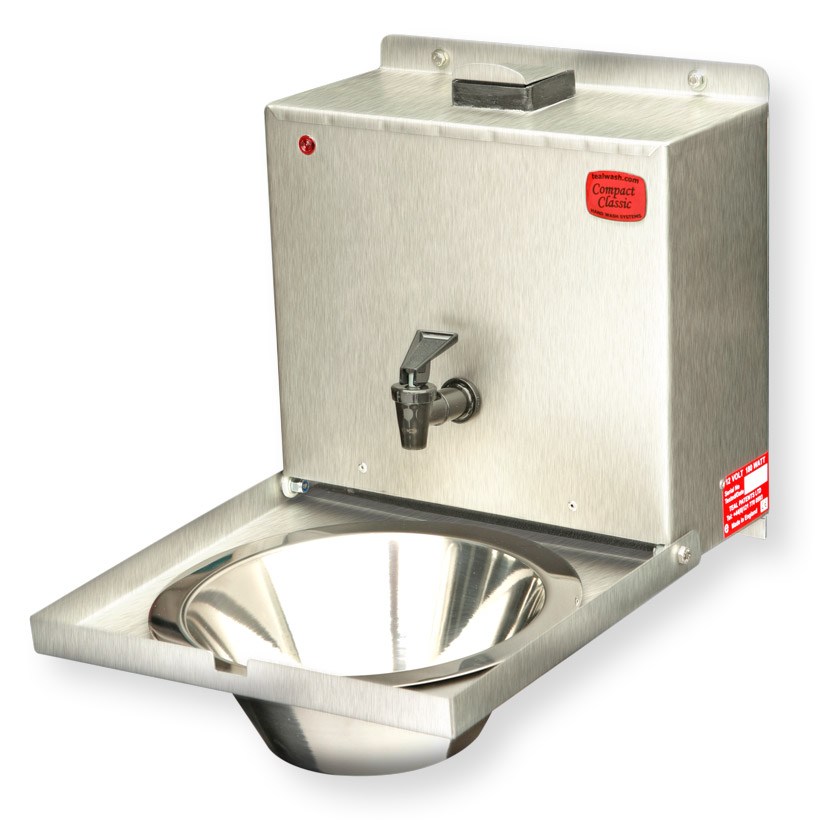

It combines the advantages and durability of brushed stainless steel finish with the latest TEAL electronic control, making it an ideal unit for motor vehicles.

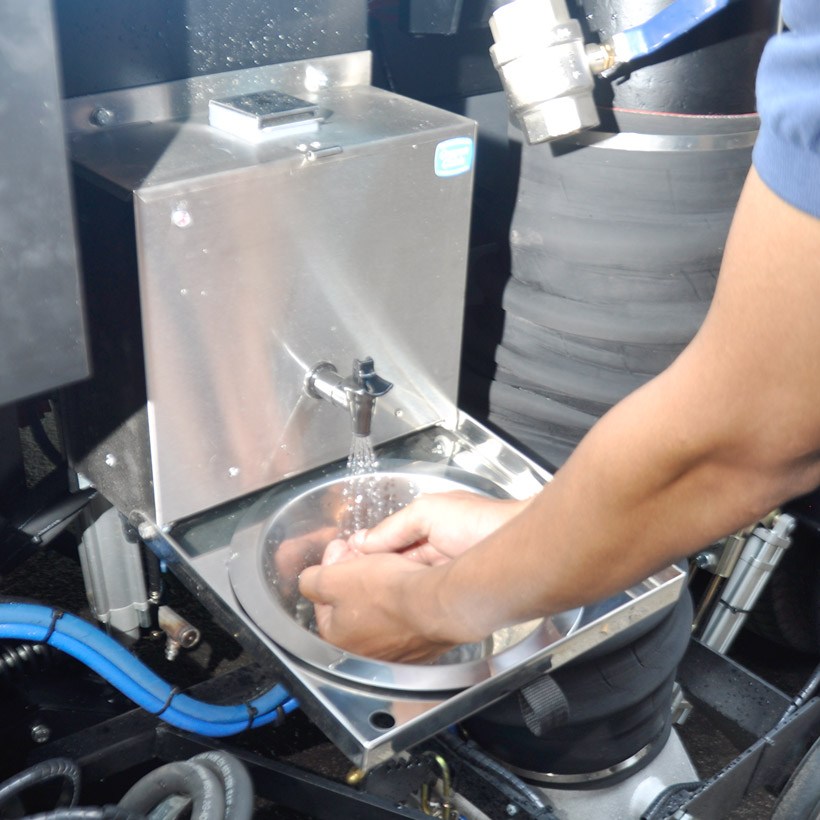

The TEAL Compact Classic for motor vehicles allows washing under hot running water that is tightly temperature controlled to give a most hygienic and comfortable wash.
The multi jet spray tap head with finger tip control, ensures an even spread of water and a excellent wash can be achieved in ten seconds using only a wineglass full of water. There’s no need to mix hot and cold water and no need to fill the bowl.
Euro 6 compliant wiring and control
Teal vehicle units incorporate 3 wire technology. Standard battery positive – red wire, earth wire – black. The white wire is to be connected to the ignition control fuse.
Standard CC12
- When the vehicle is turned off, the battery state is quiescent at 12V.
- When switched on the Ignition control wire detects vehicle turned on. The voltage sensing software will turn the heater on when 12.6 volts are detected. Thereafter the heater will be monitored by the built in thermistor and control the water temperature at 40-43°C. When the vehicle is switched off the unit will switch off having sensed the battery voltage has dropped to 12.3V and the ignition signal has been dropped. The battery will not be therefore be drained by the Compact Classic.
Standard CC24
- When the vehicle is turned off the battery state is quiescent at 24V.
- When switched on the Ignition control wire detects vehicle turned on. The voltage sensing software will turn the heater on when 25.6 volts are detected. Thereafter the heater will be monitored by the built in thermistor and control the water temperature at 40-43°C. When the vehicle is switched off the unit will switch off having sensed the battery voltage has dropped to 25.1V and the ignition signal has been dropped. The battery will not be therefore be drained by the Compact Classic.
